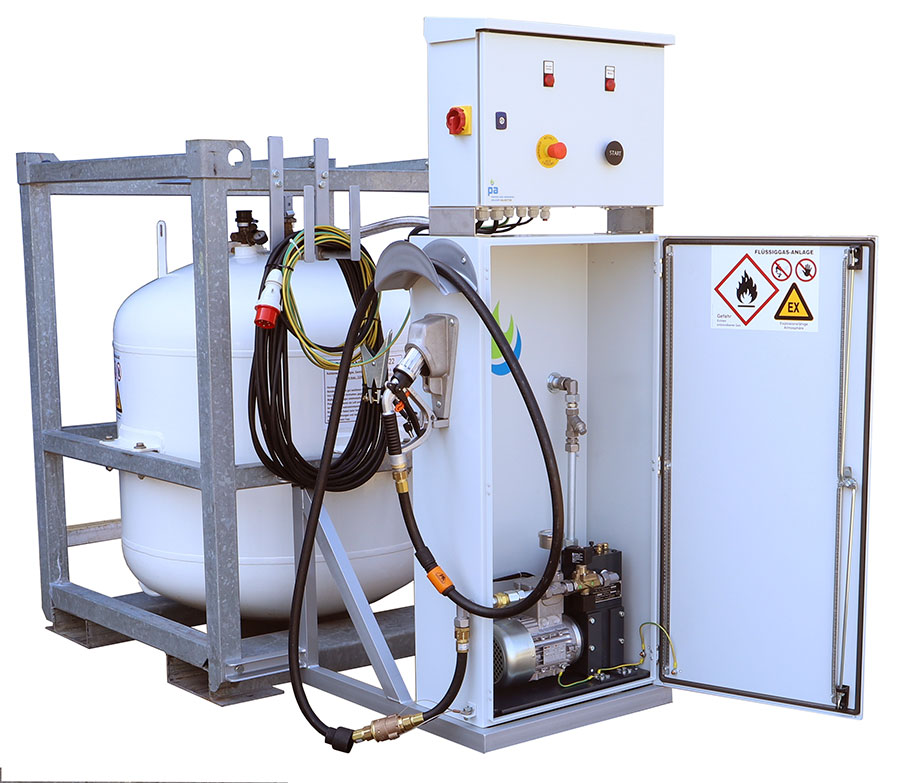

Mobile filling unit for internal application

The innovative PA LPG Mobile-Filling Unit with a Hector-Tank (capacity: 805 L) as a replacement solution in the case of failure of an existing filling system or as cost effective alternative to the conventional refueling systems.

Technical Data:

  • Mobile filling unit for internal application with transport frame
  • Tank capacity (1 Hector): 805 L (LPG)
  • Special piston pump unit type PA-KPM-1 for suction operation (Brand: P&A)
  • Capacity: approx 15 L / min, pressure max. 20 bar
  • Protective cabinet for the pump unit and the high-pressure hose Dimensions: 1200 x 600 x 300 mm (H x W x D)
  • Power supply: 230 V or 400 V
  • incl. Electric switch cabinet to control the motor and the start-button
  • incl.20,0 m electric cable with suitable plug
  • incl. 5,0 m grounding cable and ground terminal
  • CE-Marking (Declaration of Conformity) and ATEX

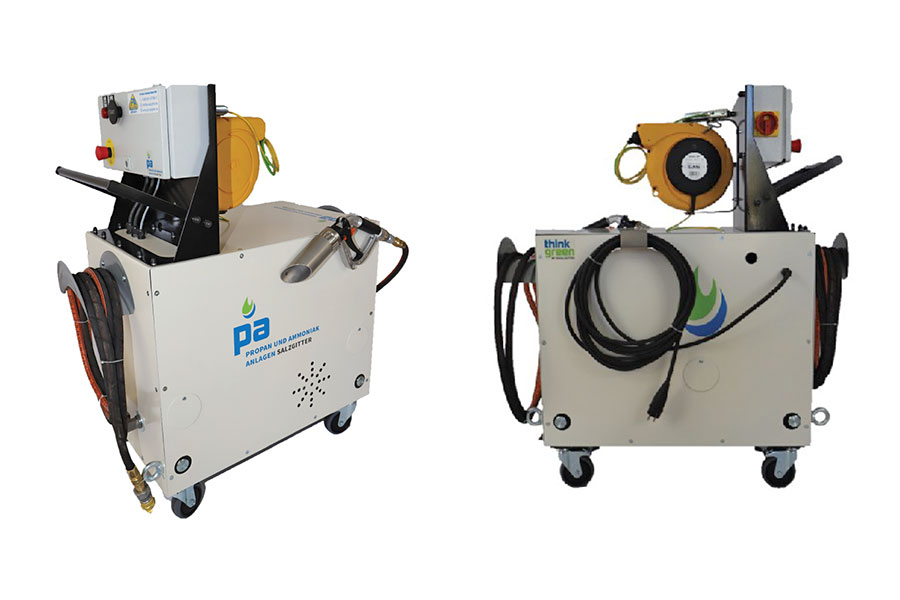

Mobile filling unit

Mobile LPG filling unit as a replacement solution in the case of failure of an existing filling system or as cost effective alternative to the conventional refueling systems (propellant gas, cylinder and balloon bottle filling systems). The operation is possible on all liquefied gas tanks, which are equipped with a liquid withdrawal valve. The special feature of this filling unit is the specially developed piston pump, which works with a compact construction in suction operation mode and is connected to a 230V or 400V power supply.

Features:

  • Transport trolley with locking rollers
  • Dimensions: 750 x 450 x 820 mm (L x W x H)
  • Piston pump unit for suction operation with Ex-Protected Motor (400 V or 230 V)
  • High-Pressure Hose for suction operation (Tank - withdrawal valve), (L = 5,0 m) High-Pressure Hose for filling operation (L = 3,0 m) incl. Nozzle and breakaway coupling
  • Electric switch cabinet
  • Ex-Protected Start-Button
  • 10,0 m electric cable with a suitable plug
  • 5,0 m grounding cable and ground terminal
  • Unit is completely wired
  • Ready-to-connect system
  • CE-Marking (Declaration of conformity) and ATEX
